Pipe Turnbuckle with Toggle & Swage Stud
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

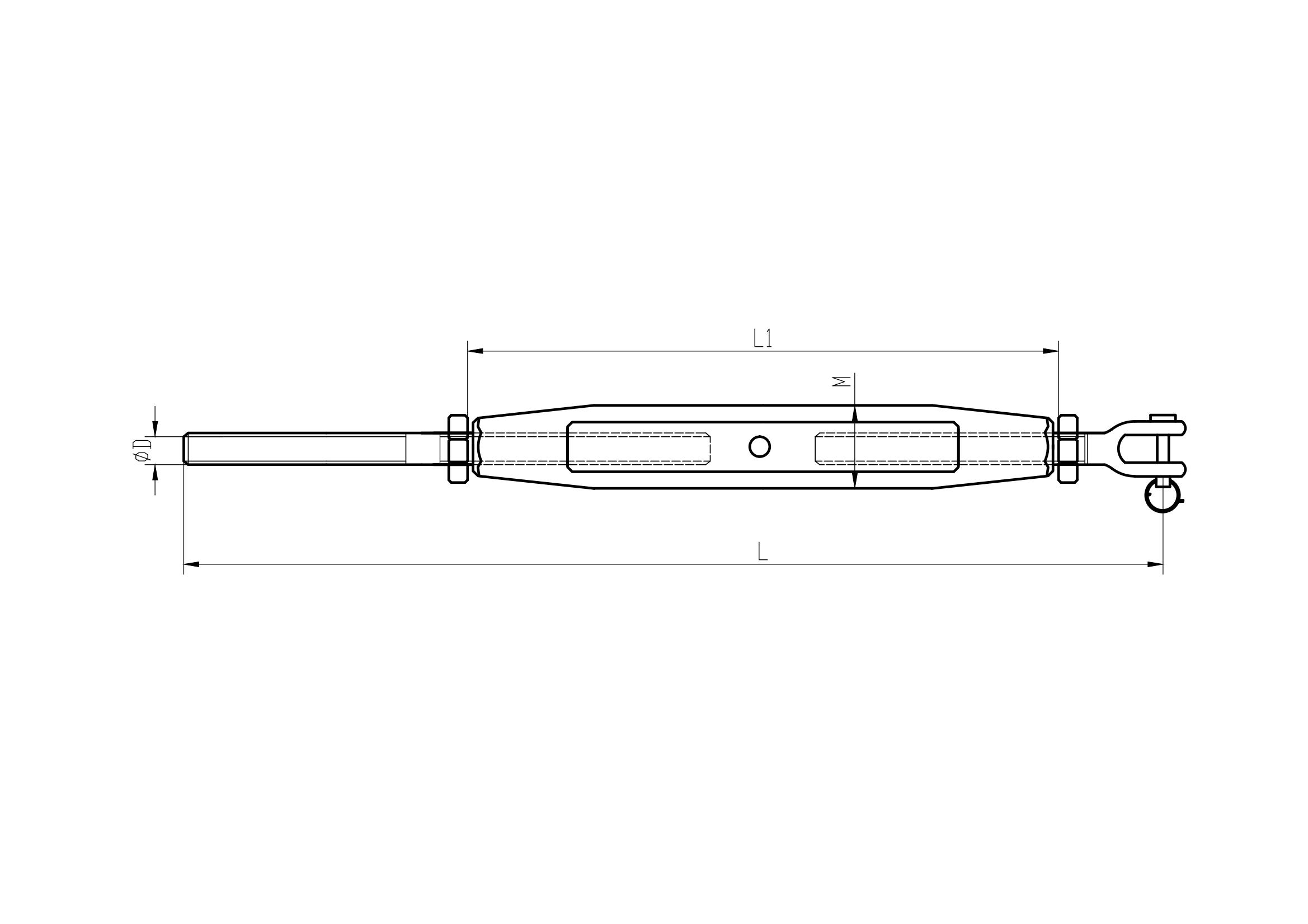

| Pipe Turnbuckle with Toggle & Swage Stud | |||||||
| Stock no. | Size(mm) | L（mm） | L1(mm) | M(thread) | OD(mm) | DiaφCable(mm) | BL(lbs) |
| JSK5021701 | 2.5 | 155 | 80 | M5 | 5.5 | 2.5 | 600 |
| JSK5021702 | 3 | 172 | 90 | M6 | 6.3 | 3 | 1000 |
| JSK5021703 | 4 | 171 | 90 | M6 | 7.5 | 4 | 1000 |
| JSK5021704 | 4 | 210 | 110 | M8 | 7.5 | 4 | 1400 |
| JSK5021705 | 5 | 216 | 110 | M8 | 9.1 | 5 | 1400 |
| JSK5021706 | 5 | 246 | 120 | M10 | 9.1 | 5 | 2200 |
| JSK5021707 | 6 | 296 | 150 | M12 | 12.5 | 6 | 4000 |
| JSK5021708 | 7 | 328 | 165 | M14 | 14.3 | 7 | 5400 |
| JSK5021709 | 8 | 310 | 150 | M12 | 16.1 | 8 | 4000 |
| JSK5021710 | 8 | 386 | 190 | M16 | 16.1 | 8 | 6500 |
| JSK5021711 | 10 | 422 | 210 | M20 | 17.8 | 10 | 8500 |
| JSK5021712 | 12 | 416 | 190 | M16 | 17.8 | 10 | 6500 |
