JIS Frame Type Turnbuckle with Eye & Hook
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

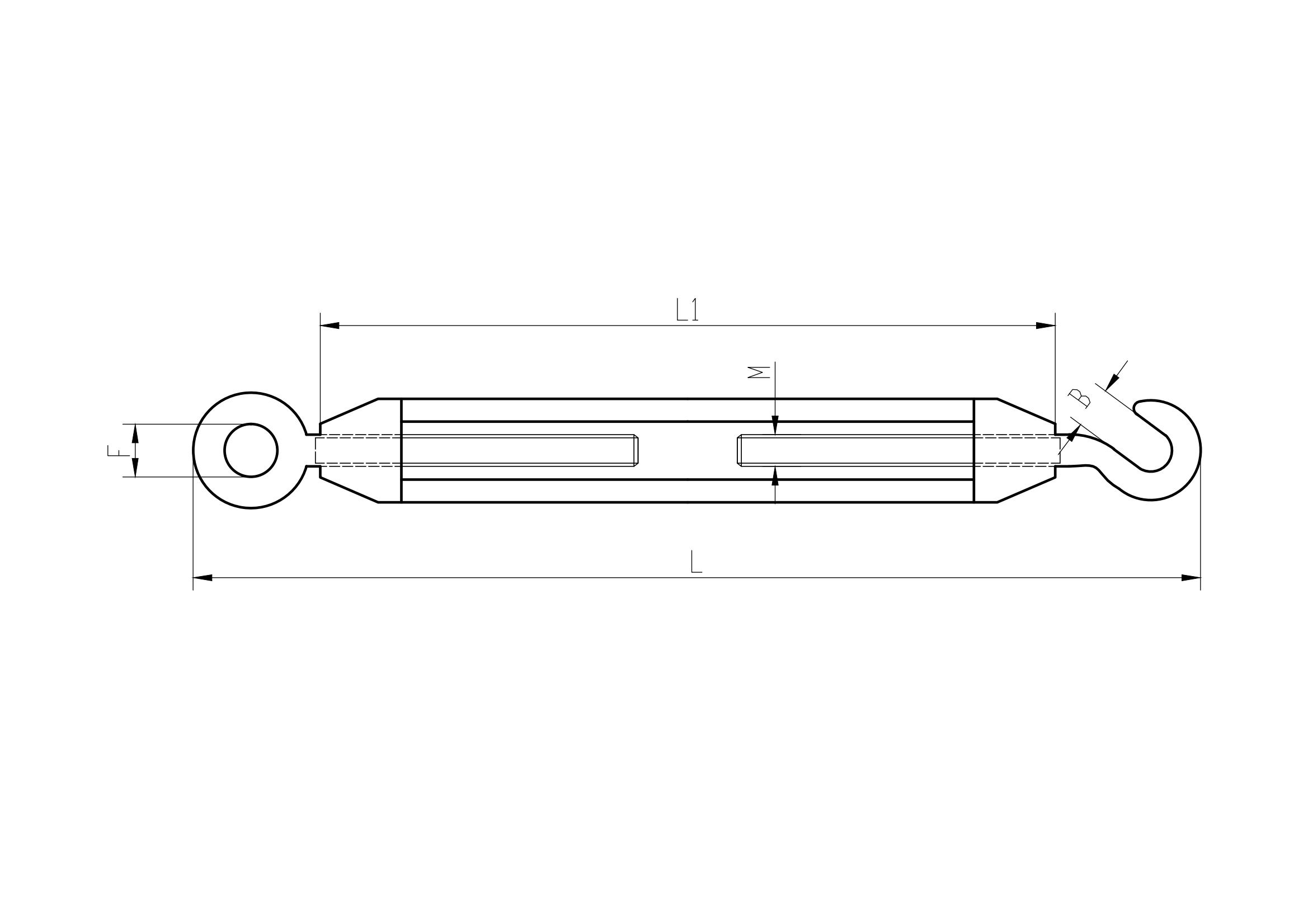

| JIS Frame Type Turnbuckle with Eye & Hook | ||||||
| Stock no. | Size(mm) | L(mm) | L1(mm) | D(mm) | S(mm) | Weight(kg) |
| JSK5021001 | 5 | 70 | 130 | 8 | 9 | 0.038 |
| JSK5021002 | 6 | 100 | 160 | 10 | 9 | 0.063 |
| JSK5021003 | 8 | 125 | 200 | 12 | 10 | 0.137 |
| JSK5021004 | 10 | 150 | 245 | 16 | 11 | 0.247 |
| JSK5021005 | 12 | 200 | 300 | 20 | 14 | 0.459 |
| JSK5021006 | 16 | 250 | 400 | 22 | 18 | 1.038 |
| JSK5021007 | 20 | 300 | 480 | 28 | 20 | 1.811 |
