European Type Frame Turnbuckle with Eye&Eye
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

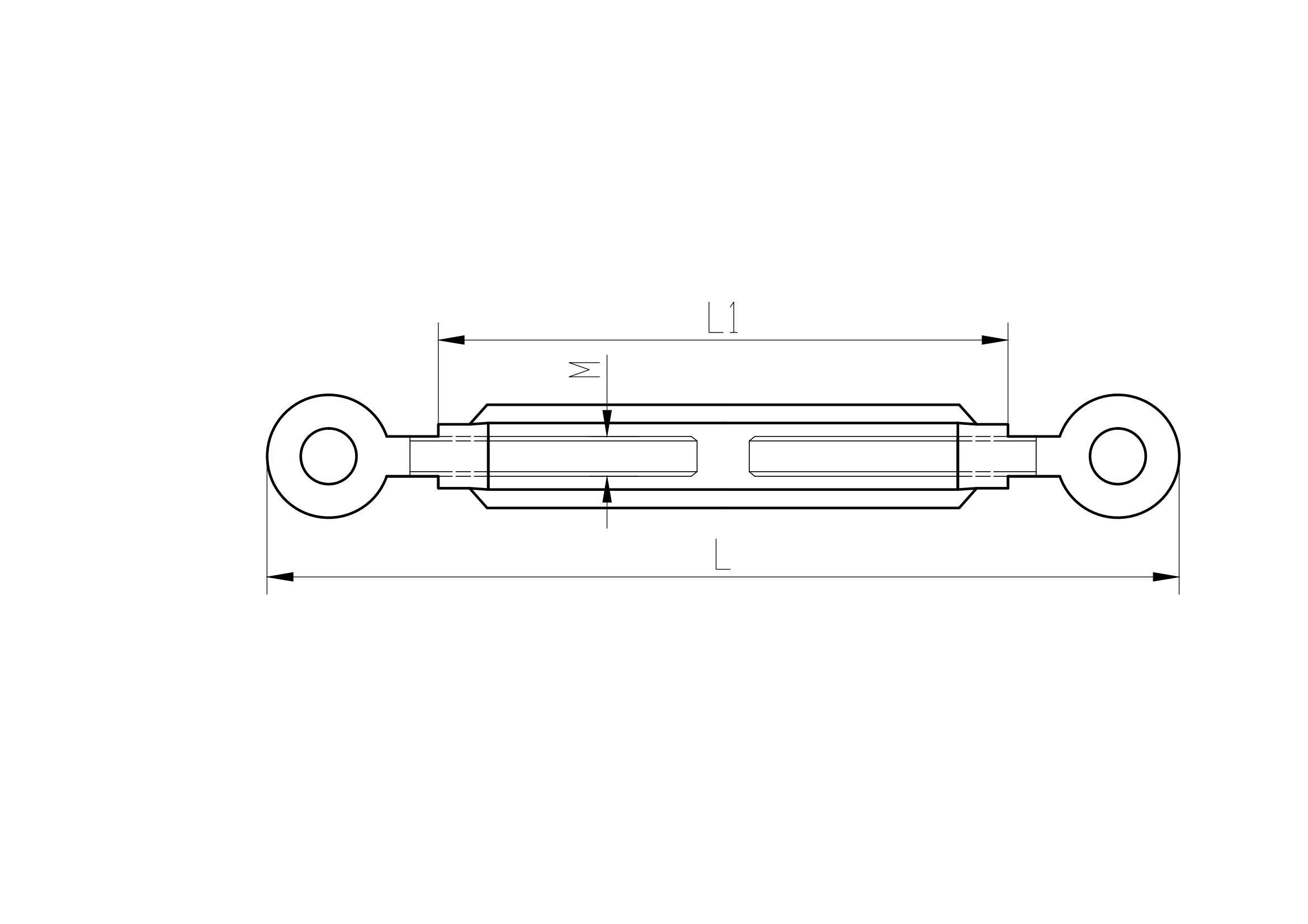

| European Type Frame Turnbuckle with Eye&Eye | |||||
| Stock no. | Size(mm) | L（mm） | L1(mm) | M(thread) | BL(lbs) |
| JSK5020101 | 4 | 102 | 60 | M4 | 475 |
| JSK5020102 | 5 | 120 | 70 | M5 | 680 |
| JSK5020103 | 6 | 160 | 90 | M6 | 1500 |
| JSK5020104 | 8 | 200 | 120 | M8 | 2300 |
| JSK5020105 | 10 | 240 | 150 | M10 | 3100 |
| JSK5020106 | 12 | 300 | 200 | M12 | 4400 |
| JSK5020107 | 16 | 390 | 250 | M16 | 8100 |
| JSK5020108 | 20 | 490 | 300 | M20 | 11000 |
