DIN1480 Turnbuckle with Eye&Eye
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

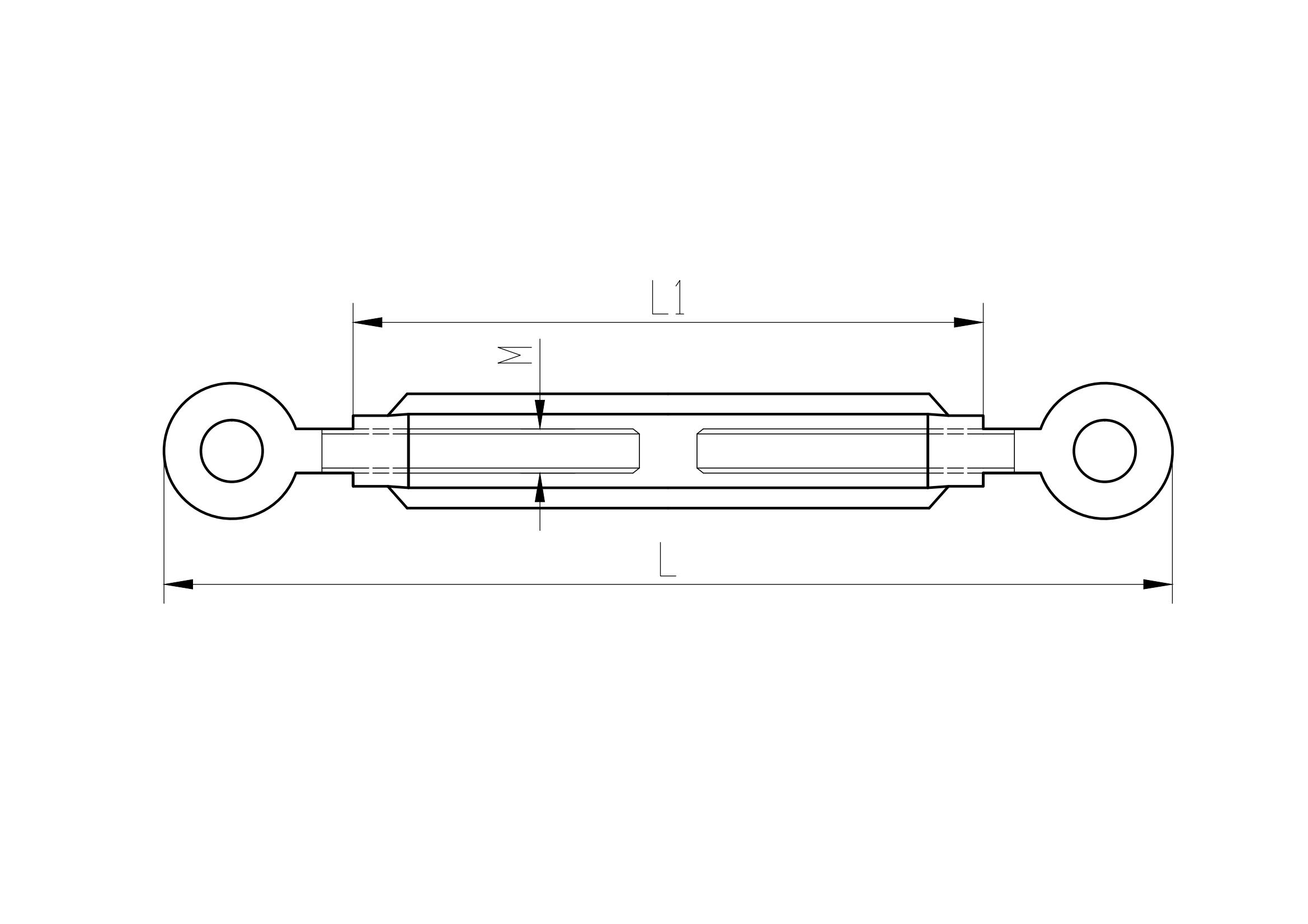

DIN1480 turnbuckle with eye & eye | |||||
Stock no. | Size(mm) | L(mm) | L1(mm) | M(thread) | WLL(kg) |
JSK5020601 | 5 | 90 | 50 | M5 | 50 |
JSK5020602 | 6 | 172 | 110 | M6 | 80 |
JSK5020603 | 8 | 182 | 110 | M8 | 160 |
JSK5020604 | 10 | 213 | 125 | M10 | 250 |
JSK5020605 | 12 | 238 | 125 | M12 | 400 |
JSK5020606 | 16 | 320 | 170 | M16 | 800 |
JSK5020607 | 20 | 367 | 200 | M20 | 1200 |
