US Type Turnbuckle with Jaw & Jaw
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs
| US Type Turnbuckle with Jaw & Jaw | |||||||

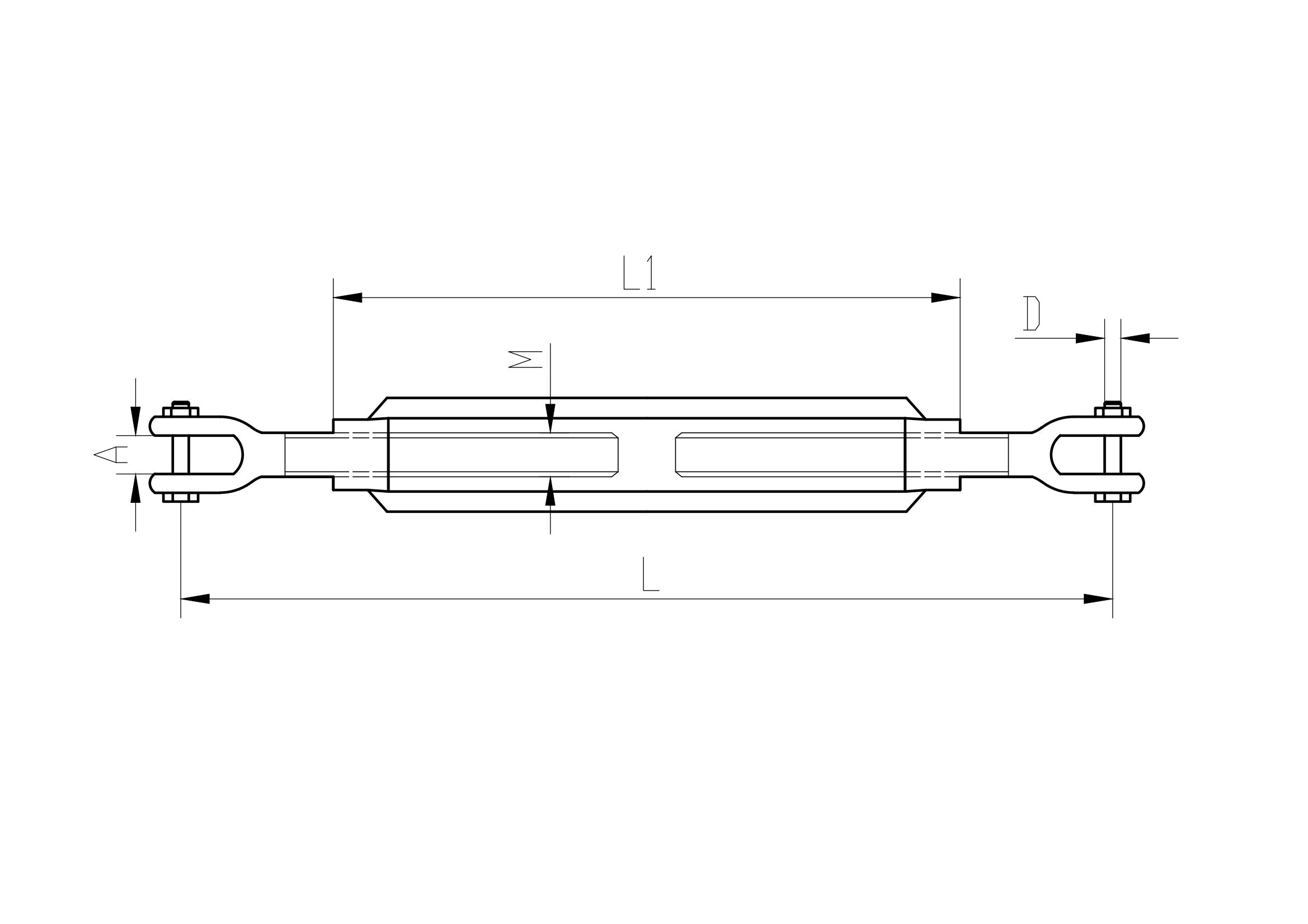

| Stock no. | Size(in) | L（mm） | L1(mm) | A(mm) | D(thread) | M(thread) | WLL(kg) |
| JSK5020801 | 1/4 | 190 | 120 | 11 | 1/4"UNC | 1/4"UNC | 160 |
| JSK5020802 | 5/16 | 232 | 140 | 12.5 | 1/4"UNC | 5/16"UNC | 250 |
| JSK5020803 | 3/8 | 270 | 180 | 14 | 5/16"UNC | 3/8"UNC | 400 |
| JSK5020804 | 1/2 | 305 | 190 | 16 | 3/8"UNC | 1/2"UNC | 700 |
| JSK5020805 | 5/8 | 345 | 200 | 19 | 1/2"UNC | 5/8"UNC | 1120 |
| JSK5020806 | 3/4 | 381 | 210 | 23 | 5/8"UNC | 3/4"UNC | 1600 |
