Pipe Turnbuckle with Toggle & Toggle
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs
| Pipe Turnbuckle with Toggle & Toggle | |||||

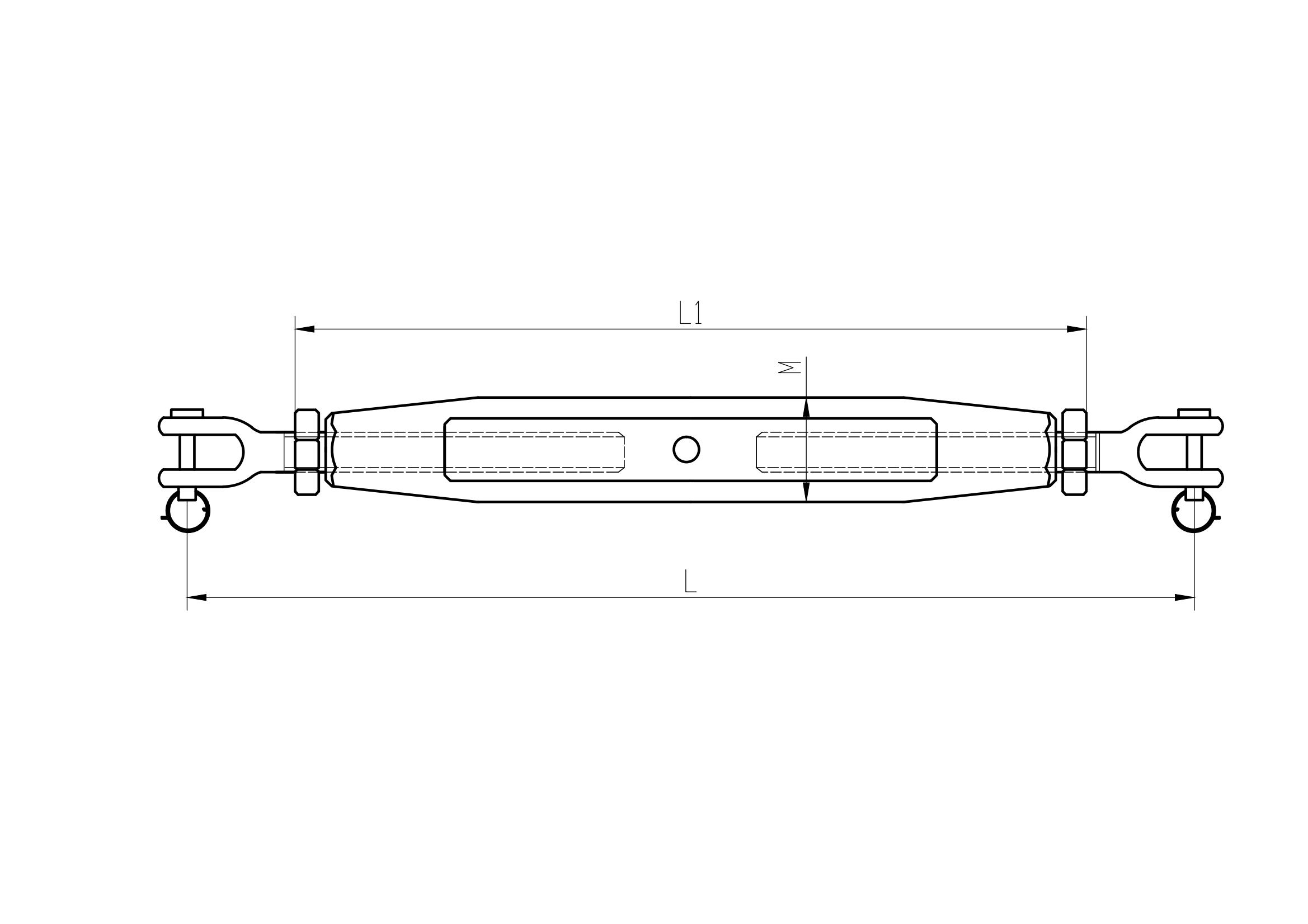

| Stock no. | Size(mm) | L（mm） | L1(mm) | M(thread) | BL(lbs) |
| JSK5021501 | 5 | 131 | 80 | M5 | 500 |
| JSK5021502 | 6 | 148 | 90 | M6 | 900 |
| JSK5021503 | 8 | 180 | 110 | M8 | 1650 |
| JSK5021504 | 10 | 220 | 120 | M10 | 2500 |
| JSK5021505 | 12 | 258 | 150 | M12 | 3700 |
| JSK5021506 | 14 | 295 | 165 | M14 | 5000 |
| JSK5021507 | 16 | 335 | 190 | M16 | 6950 |
| JSK5021508 | 20 | 385 | 210 | M20 | 9600 |
