Pipe Turnbuckle with Jaw & Jaw
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

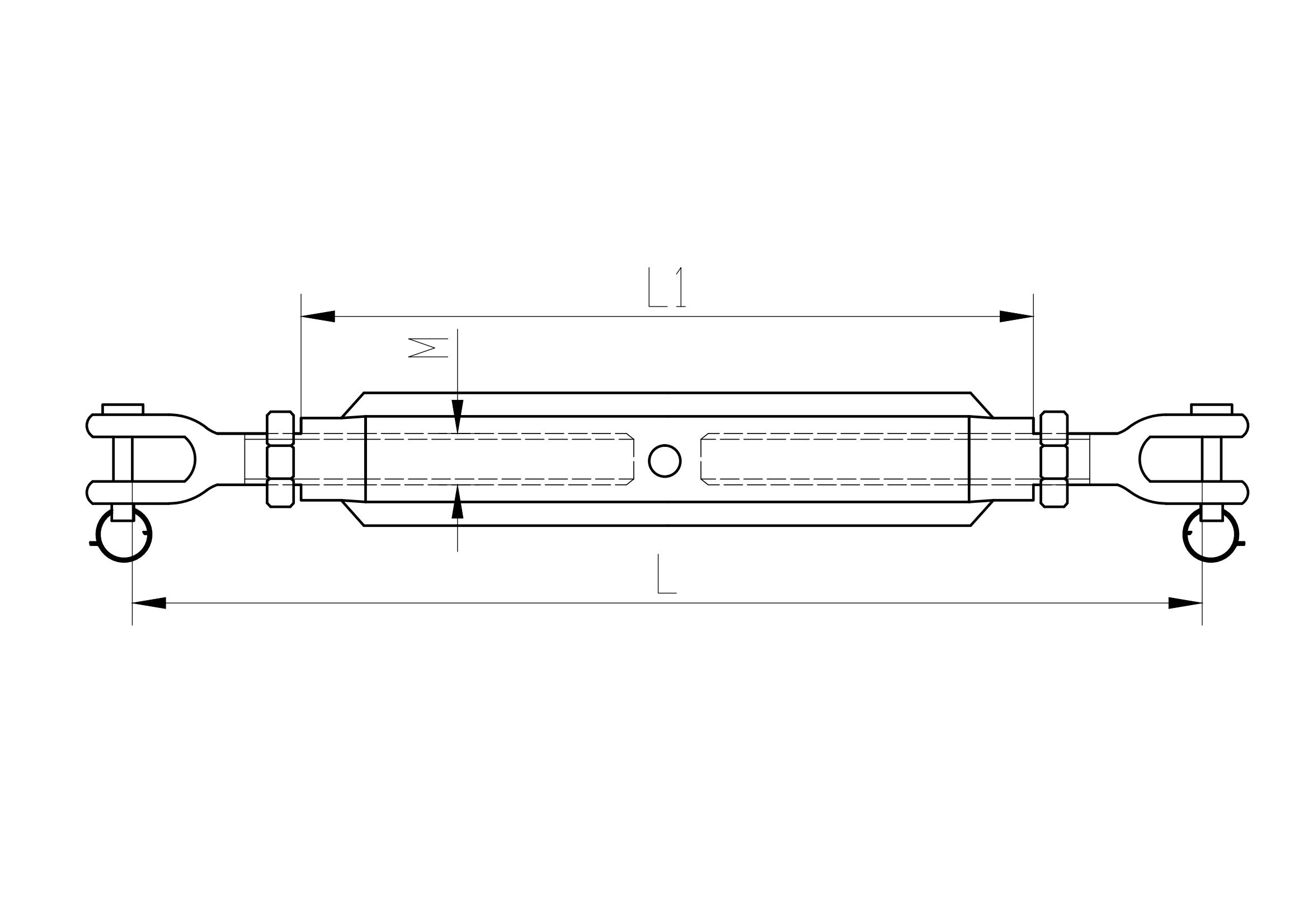

| Pipe Turnbuckle with Jaw & Jaw | |||||
| Stock no. | Size(mm) | L（mm） | L1(mm) | M(thread) | BL(lbs) |
| JSK5021401 | 5 | 115 | 80 | M5 | 750 |
| JSK5021402 | 6 | 142 | 90 | M6 | 1400 |
| JSK5021403 | 8 | 160 | 110 | M8 | 2200 |
| JSK5021404 | 10 | 200 | 120 | M10 | 3450 |
| JSK5021405 | 12 | 245 | 150 | M12 | 5000 |
| JSK5021406 | 14 | 280 | 165 | M14 | 6400 |
| JSK5021407 | 16 | 304 | 190 | M16 | 8000 |
| JSK5021408 | 20 | 350 | 210 | M20 | 10500 |
