US Type Turnbuckle with Eye & Eye
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

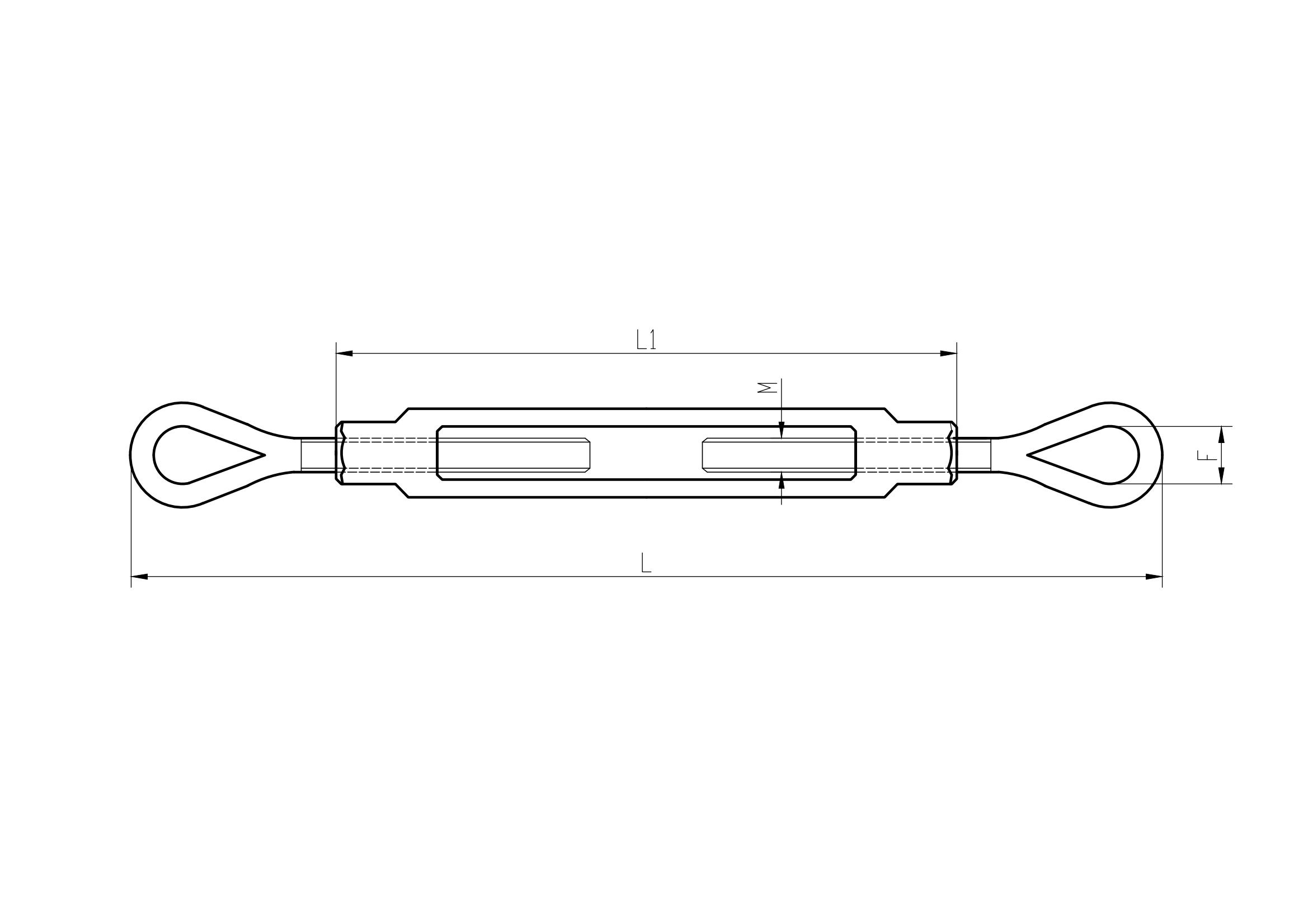

US Type Turnbuckle with Eye & Eye | ||||||
Stock no. | Size(in) | L(mm) | L1(mm) | F(mm) | M(thread) | WLL(kg) |
JSK5020701 | 1/4 | 200 | 120 | 8 | 1/4"UNC | 160 |
JSK5020702 | 5/16 | 235 | 140 | 10 | 5/16"UNC | 250 |
JSK5020703 | 3/8 | 293 | 180 | 12.5 | 3/8"UNC | 400 |
JSK5020704 | 1/2 | 330 | 190 | 18 | 1/2"UNC | 700 |
JSK5020705 | 5/8 | 375 | 200 | 22 | 5/8"UNC | 1120 |
JSK5020706 | 3/4 | 408 | 210 | 25 | 3/4"UNC | 1600 |
