Precision Cast US Type Turnbuckle with Jaw&Jaw
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

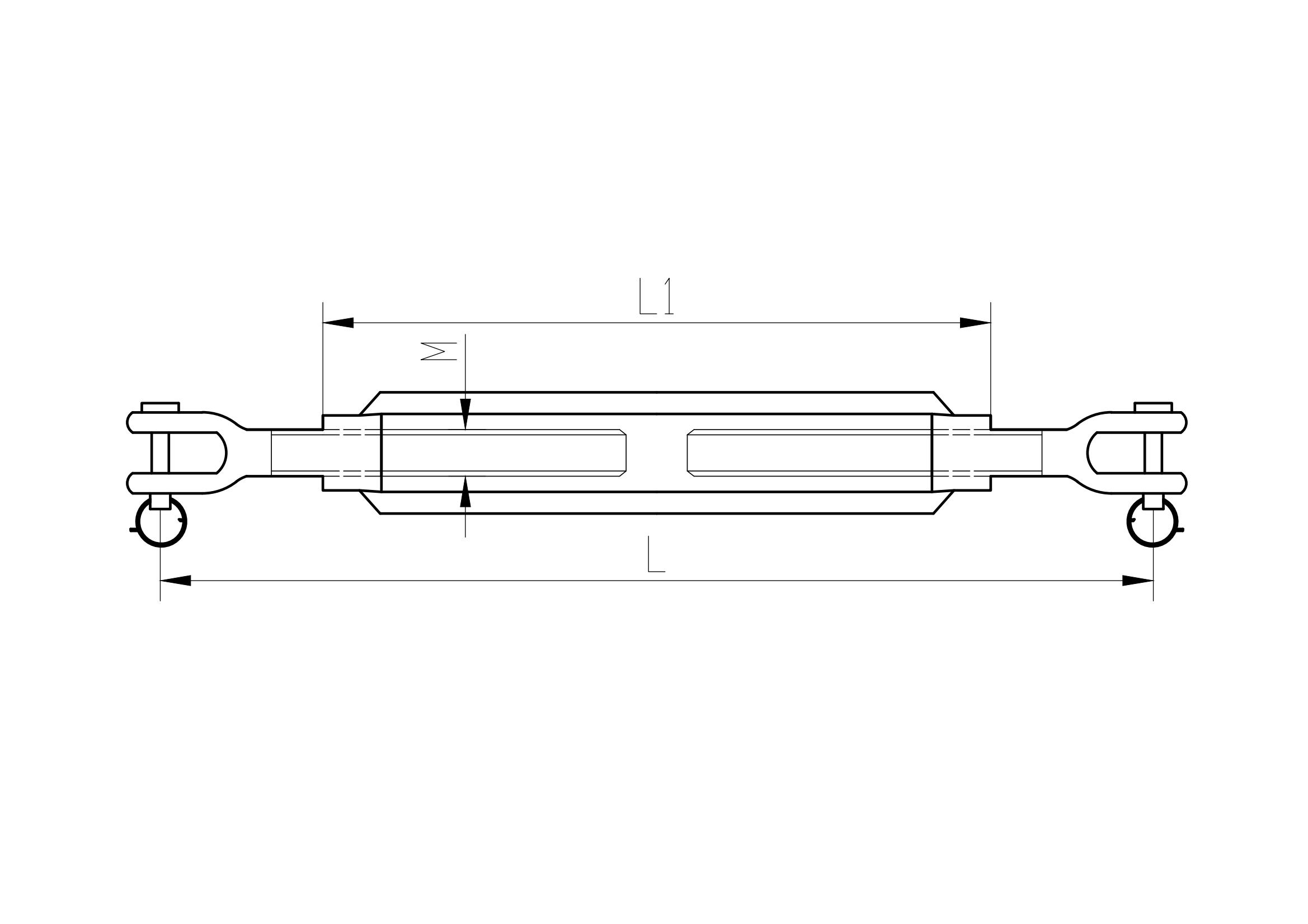

| Precision Cast US Type Turnbuckle with Jaw&Jaw | |||||
| Stock no. | Size(mm) | L（mm） | L1(mm) | M(thread) | BL(lbs) |
| JSK5020401 | 5 | 110 | 70 | M5 | 750 |
| JSK5020402 | 6 | 140 | 90 | M6 | 1400 |
| JSK5020403 | 8 | 180 | 120 | M8 | 2200 |
| JSK5020404 | 10 | 220 | 150 | M10 | 3450 |
| JSK5020405 | 12 | 300 | 200 | M12 | 5000 |
| JSK5020406 | 16 | 360 | 250 | M16 | 8000 |
| JSK5020407 | 20 | 440 | 300 | M20 | 10500 |
