Precision Cast US Type Turnbuckle with Jaw&Eye
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

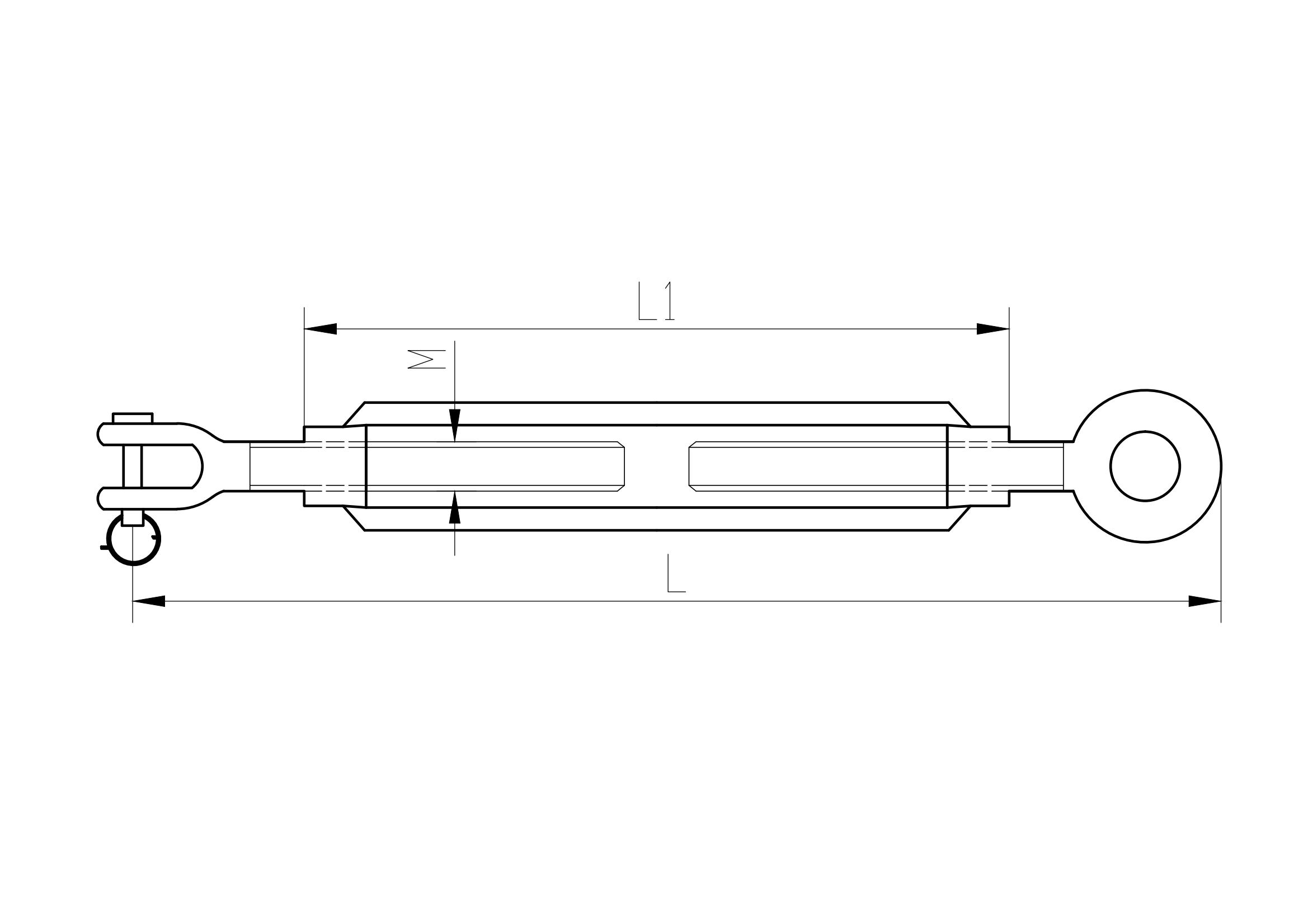

Precision Cast US Type Turnbuckle with Jaw&Eye | |||||
Stock no. | Size(mm) | L(mm) | L1(mm) | M(thread) | BL(lbs) |
JSK5020501 | 5 | 120 | 70 | M5 | 680 |
JSK5020502 | 6 | 145 | 90 | M6 | 1500 |
JSK5020503 | 8 | 190 | 120 | M8 | 2300 |
JSK5020504 | 10 | 235 | 150 | M10 | 3100 |
JSK5020505 | 12 | 310 | 200 | M12 | 4400 |
JSK5020506 | 16 | 360 | 250 | M16 | 8000 |
JSK5020507 | 20 | 470 | 300 | M20 | 11000 |
