US Type Turnbuckle with Jaw & Eye
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

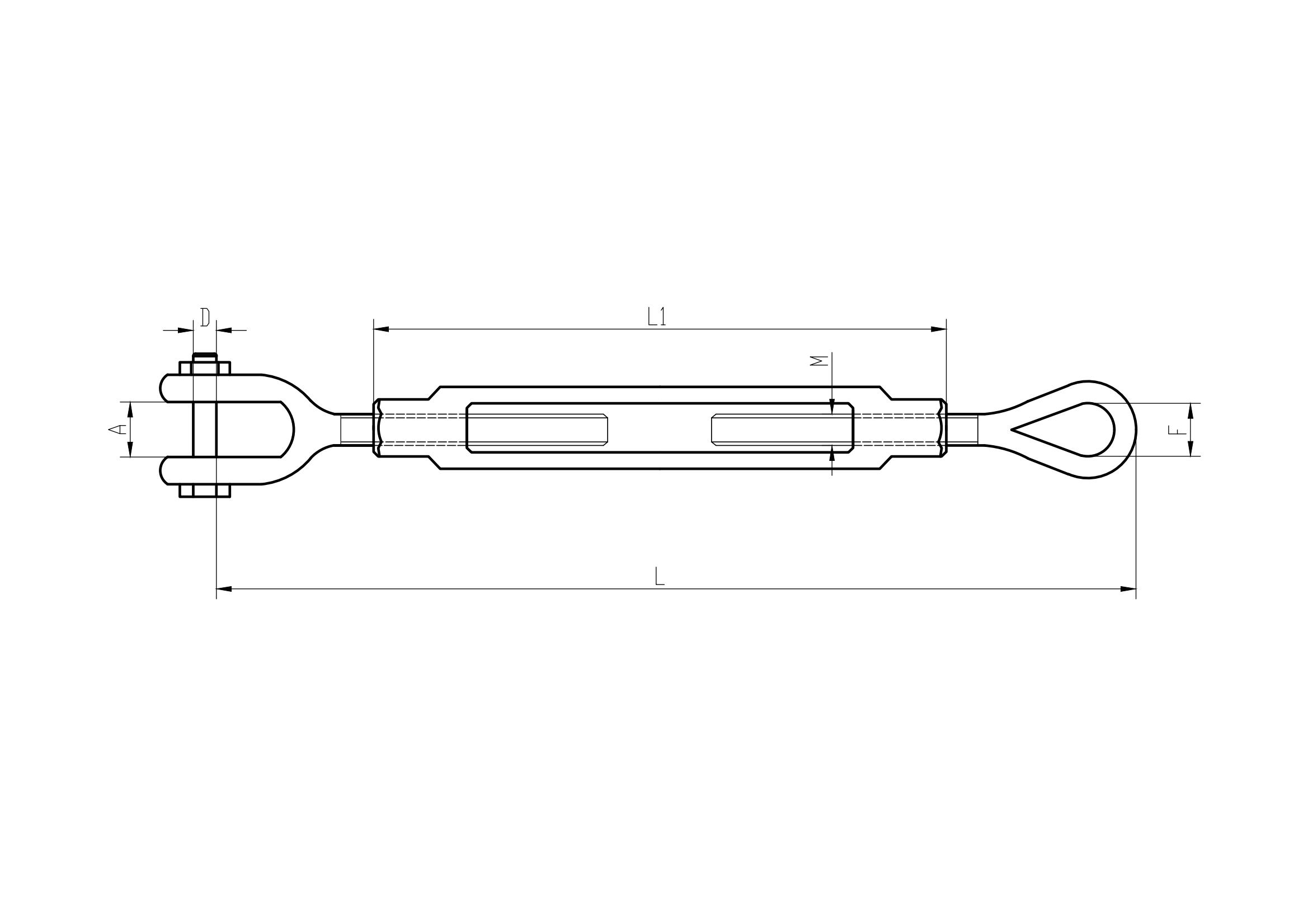

| US Type Turnbuckle with Jaw & Eye | ||||||||
| Stock no. | Size(in) | L（mm） | L1(mm) | A(mm) | D(thread) | F(mm) | M(thread) | WLL(kg) |
| JSK5020901 | 1/4 | 197 | 120 | 11 | 1/4"UNC | 8 | 1/4"UNC | 160 |
| JSK5020902 | 5/16 | 234 | 140 | 12.5 | 1/4"UNC | 10 | 5/16"UNC | 250 |
| JSK5020903 | 3/8 | 282 | 180 | 14 | 5/16"UNG | 12.5 | 3/8"UNC | 400 |
| JSK5020904 | 1/2 | 318 | 190 | 16 | 3/8"UNC | 18 | 1/2"UNC | 700 |
| JSK5020905 | 5/8 | 360 | 200 | 19 | 1/2"UNC | 22 | 5/8"UNC | 1120 |
| JSK5020906 | 3/4 | 395 | 210 | 23 | 5/8"UNC | 25 | 3/4"UNC | 1600 |
