European Type Frame Turnbuckle with Hook&Eye
•Material: Stainless steel 304 or 316
•Production technology: Forging, Casting
•Breakage test is made for samples of each batch.
•Surface treatment: Self color/Polishing
•Different sizes and materials can be customized according to customer needs

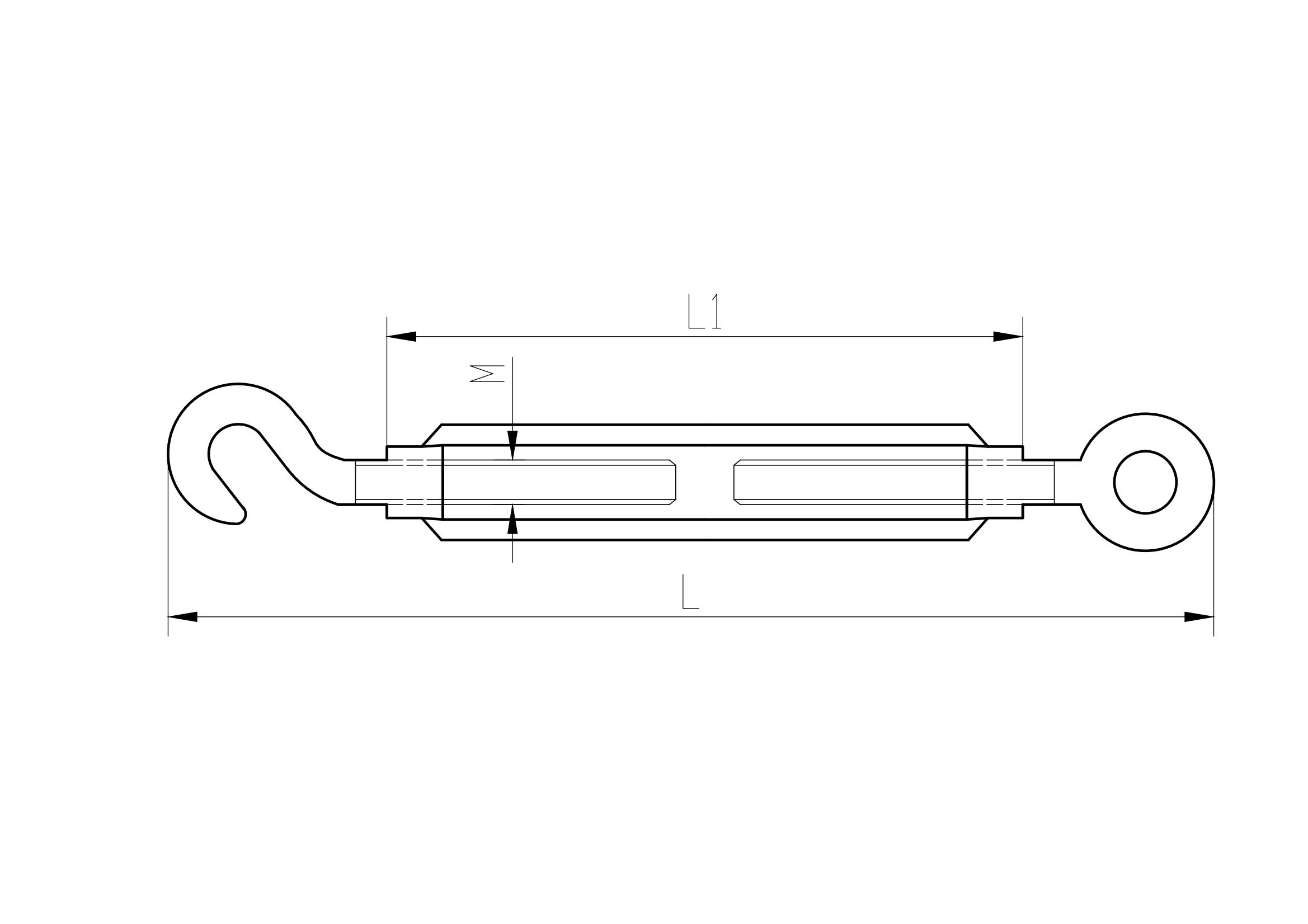

| European Type Frame Turnbuckle with Hook&Eye | |||||
| Stock no. | Size(mm) | L（mm） | L1(mm) | M(thread) | BL(lbs) |
| JSK5020201 | 4 | 103 | 60 | M4 | 100 |
| JSK5020202 | 5 | 120 | 70 | M5 | 130 |
| JSK5020203 | 6 | 160 | 90 | M6 | 350 |
| JSK5020204 | 8 | 200 | 120 | M8 | 650 |
| JSK5020205 | 10 | 240 | 150 | M10 | 800 |
| JSK5020206 | 12 | 300 | 200 | M12 | 1400 |
| JSK5020207 | 16 | 390 | 250 | M16 | 2400 |
| JSK5020208 | 20 | 490 | 300 | M20 | 3500 |
