Duplex Clips
•Material: Stainless steel 304 or 316
•Production technology: Stamping
•Surface treatment: Self color/Polishing

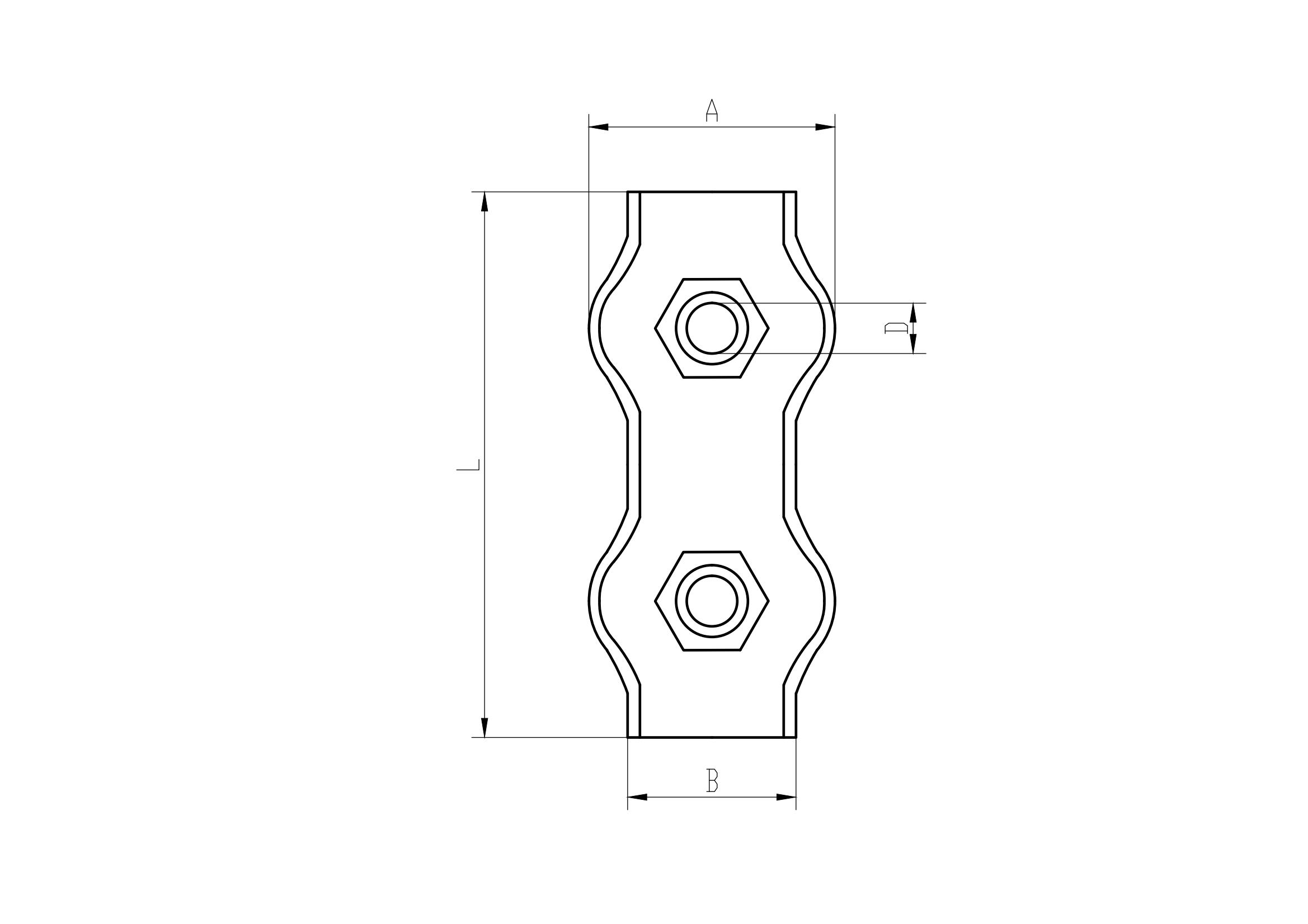

Duplex Clips | |||||
Stock no. | Size for cable(mm) | A(mm) | B(mm) | D(thread) | L(mm) |
JSK5030701 | 2 | 11.5 | 4 | M4 | 30 |
JSK5030702 | 3 | 14 | 6 | M4 | 35 |
JSK5030703 | 4 | 16.5 | 8 | M5 | 40 |
JSK5030704 | 5 | 20 | 10 | M5 | 50 |
JSK5030705 | 6 | 24 | 12 | M6 | 60 |
JSK5030706 | 8 | 30 | 16 | M8 | 75 |
JSK5030707 | 10 | 35 | 20 | M10 | 85 |
