US Type Wire Rope Clips
•Material: Stainless steel 304 or 316
•Production technology: Casting
•Surface treatment: Self color/Polishing

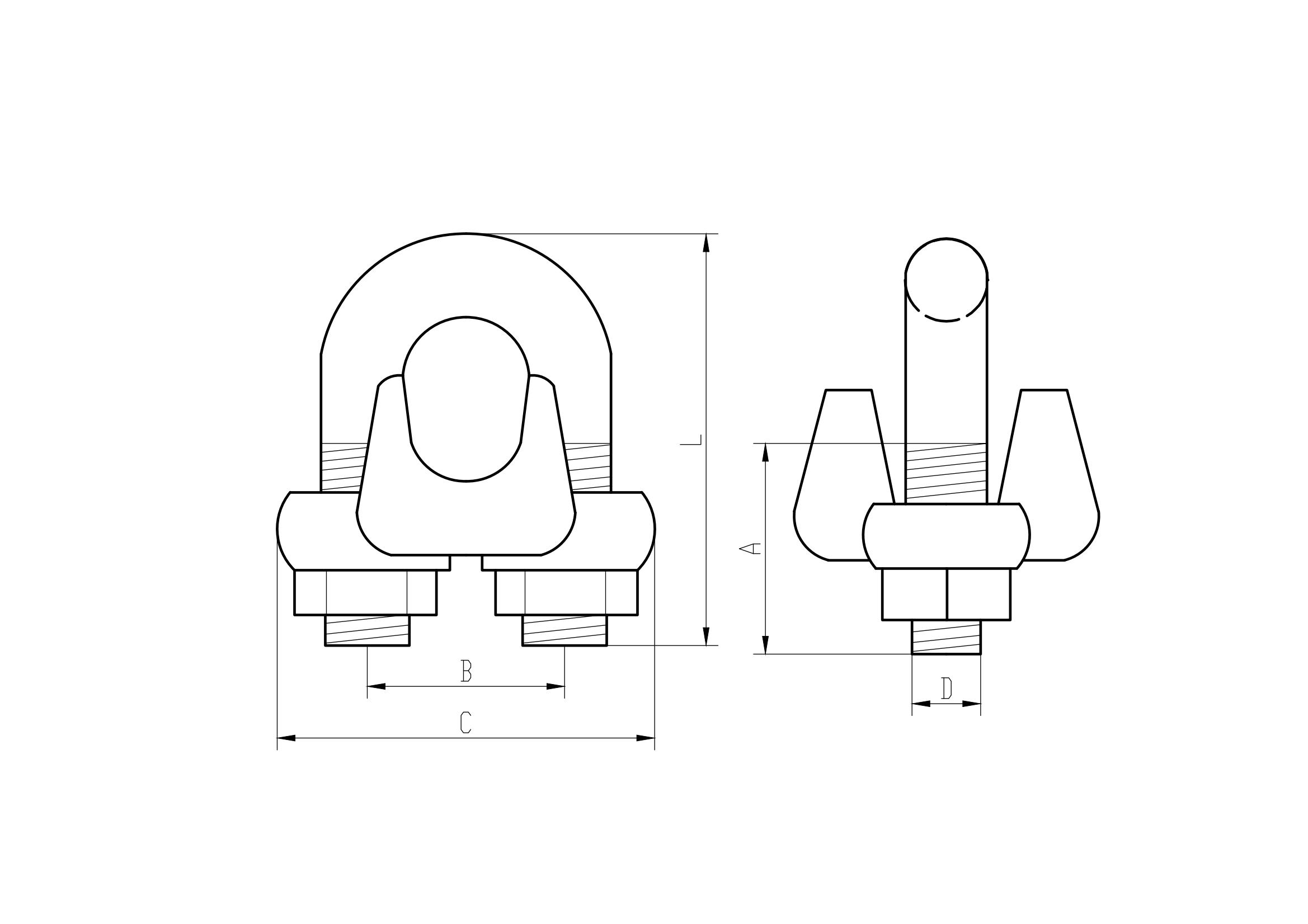

| US Type Wire Rope Clips | ||||||
| Stock no. | Size(in) | A(mm) | B(mm) | C(mm) | D（thread） | L（mm） |
| JSK5030301 | 1/8 | 14 | 11.0 | 22 | 3/16" | 20.0 |
| JSK5030302 | 3/16 | 16 | 13.5 | 26 | 1/4" | 24.0 |
| JSK5030303 | 1/4 | 20 | 17.0 | 32 | 5/16" | 31.5 |
| JSK5030304 | 5/16 | 22 | 18.3 | 35 | 5/16" | 34.0 |
| JSK5030305 | 3/8 | 27 | 22.5 | 40 | 3/8" | 41.8 |
| JSK5030306 | 7/16 | 30 | 24.0 | 43 | 3/8" | 42.8 |
| JSK5030307 | 1/2 | 35 | 27.0 | 49 | 7/16" | 53.9 |
| JSK5030308 | 9/16 | 40 | 30.0 | 52 | 1/2" | 54.7 |
| JSK5030309 | 5/8 | 40 | 33.0 | 57 | 1/2" | 59.2 |
| JSK5030310 | 3/4 | 42 | 34.5 | 61 | 9/16" | 68.7 |
| JSK5030311 | 7/8 | 46 | 41.0 | 71 | 5/8" | 78.0 |
| JSK5030312 | 1 | 55 | 45.5 | 77 | 5/8" | 87.5 |
