DIN741 Wire Rope Clips
•Material: Stainless steel 304 or 316
•Production technology: Casting
•Surface treatment: Self color/Polishing

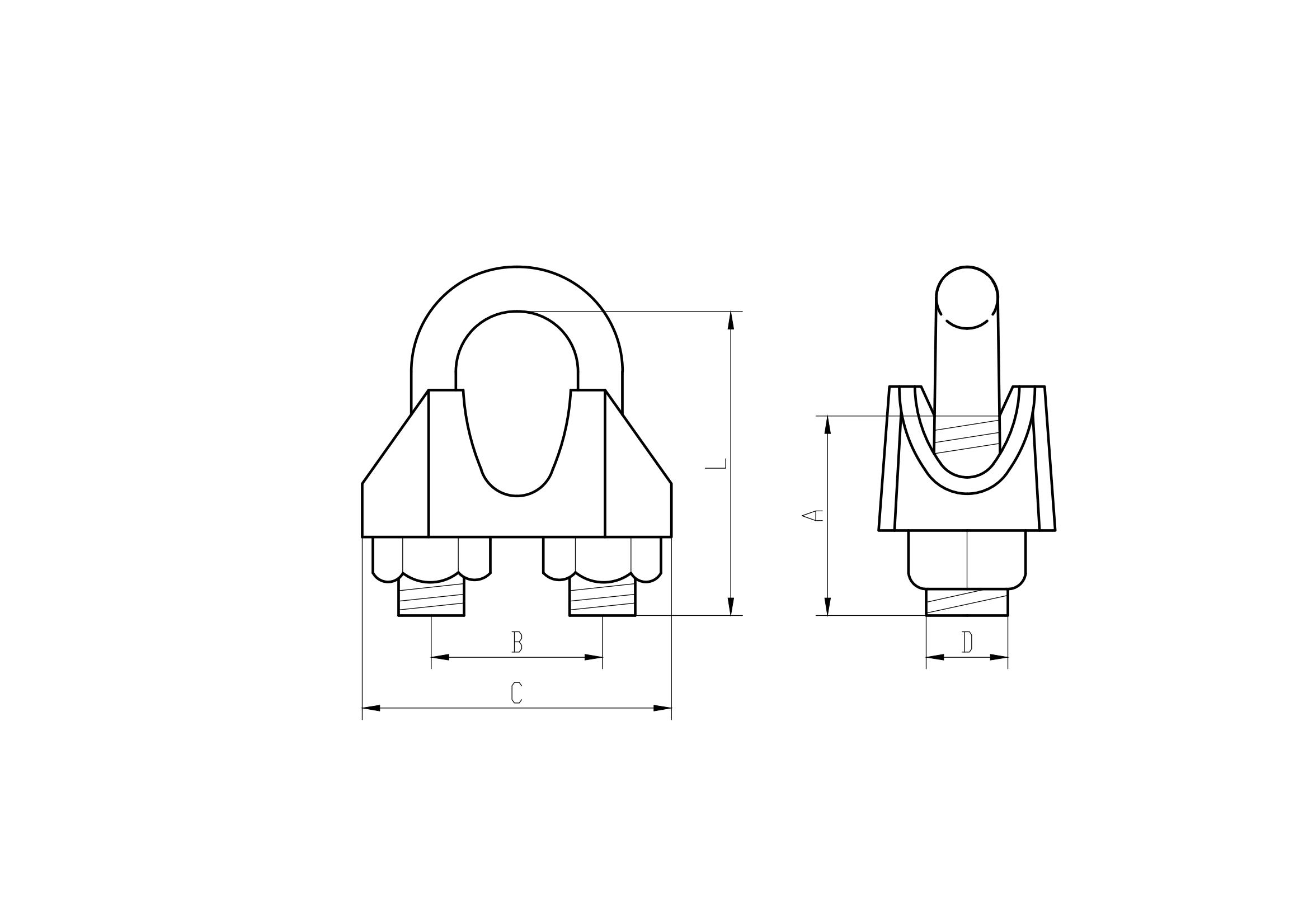

| DIN741 Wire Rope Clips | ||||||
| Stock no. | Size(mm) | A(mm) | B(mm) | C(mm) | D（thread） | L（mm） |
| JSK5030101 | 3 | 12 | 9 | 21 | M4 | 16 |
| JSK5030102 | 4 | 12 | 10 | 22 | M4 | 18 |
| JSK5030103 | 5 | 13 | 11 | 23 | M5 | 19 |
| JSK5030104 | 6 | 15 | 13 | 26 | M5 | 23 |
| JSK5030105 | 8 | 19 | 16 | 30 | M6 | 28 |
| JSK5030106 | 10 | 22 | 19 | 34 | M8 | 34 |
| JSK5030107 | 11 | 22 | 20 | 36 | M8 | 36 |
| JSK5030108 | 13 | 30 | 24 | 42 | M10 | 45 |
| JSK5030109 | 14 | 30 | 25 | 44 | M10 | 47 |
| JSK5030110 | 16 | 33 | 29 | 50 | M12 | 51 |
| JSK5030111 | 19 | 38 | 32 | 54 | M12 | 63 |
| JSK5030112 | 22 | 44 | 37 | 61 | M14 | 71 |
| JSK5030113 | 25 | 45 | 41 | 65 | M14 | 81 |
