Simplex Clips
•Material: Stainless steel 304 or 316
•Production technology: Stamping
•Surface treatment: Self color/Polishing

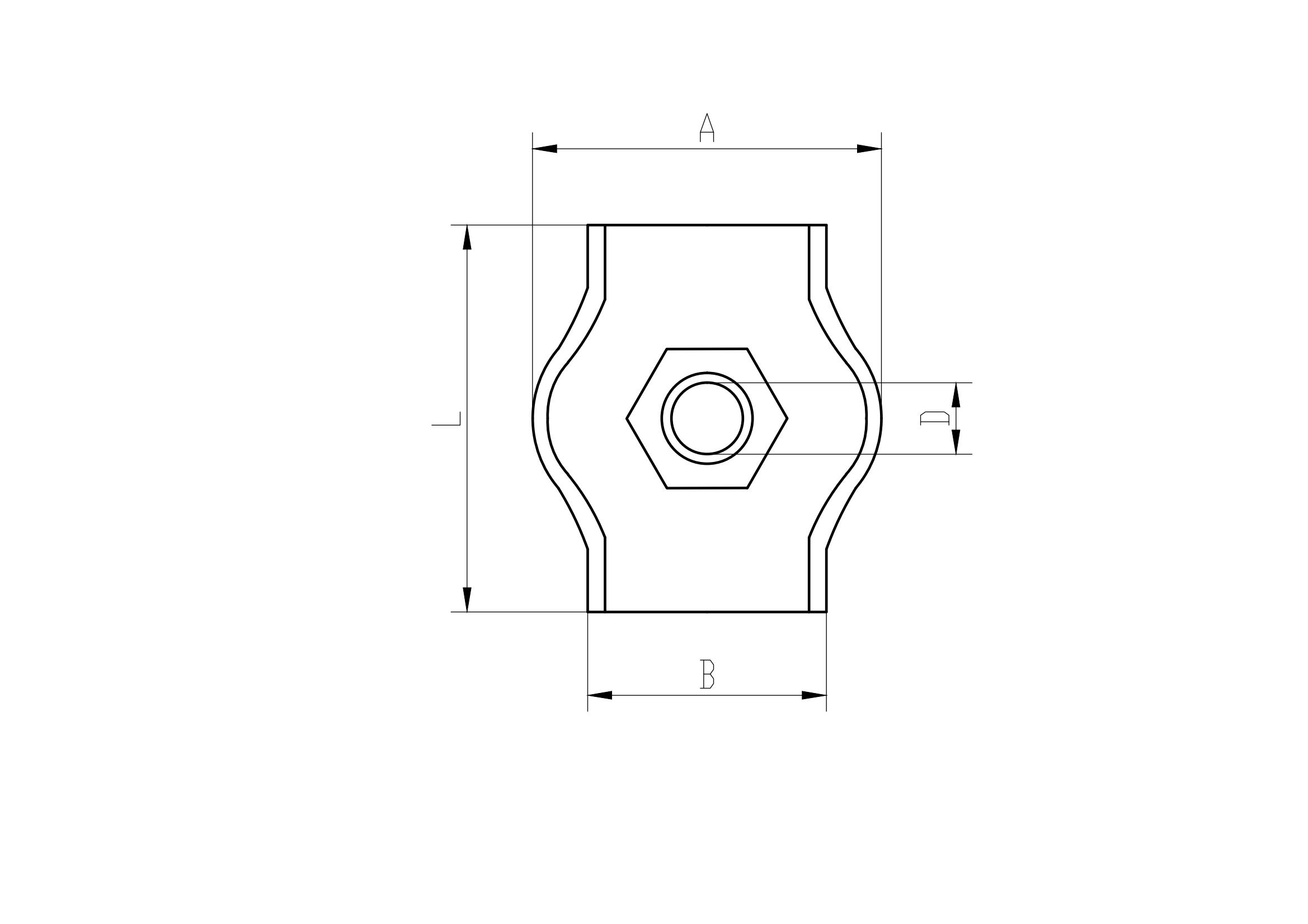

Simplex Clips | |||||
Stock no. | Size for cable(mm) | A(mm) | B(mm) | D(thread) | L(mm) |
JSK5030601 | 2 | 12 | 4 | M4 | 15 |
JSK5030602 | 3 | 14 | 6 | M4 | 17 |
JSK5030603 | 4 | 16.5 | 8 | M5 | 20 |
JSK5030604 | 5 | 20 | 10 | M5 | 25 |
JSK5030605 | 6 | 24 | 12 | M6 | 30 |
JSK5030606 | 8 | 30 | 16 | M8 | 37 |
JSK5030607 | 10 | 35 | 20 | M10 | 42 |
