US Type Forged Wire Rope Clips
•Material: Stainless steel 304 or 316
•Produced as per American standard
•Production technology: Forging
•Surface treatment: Self color/Polishing

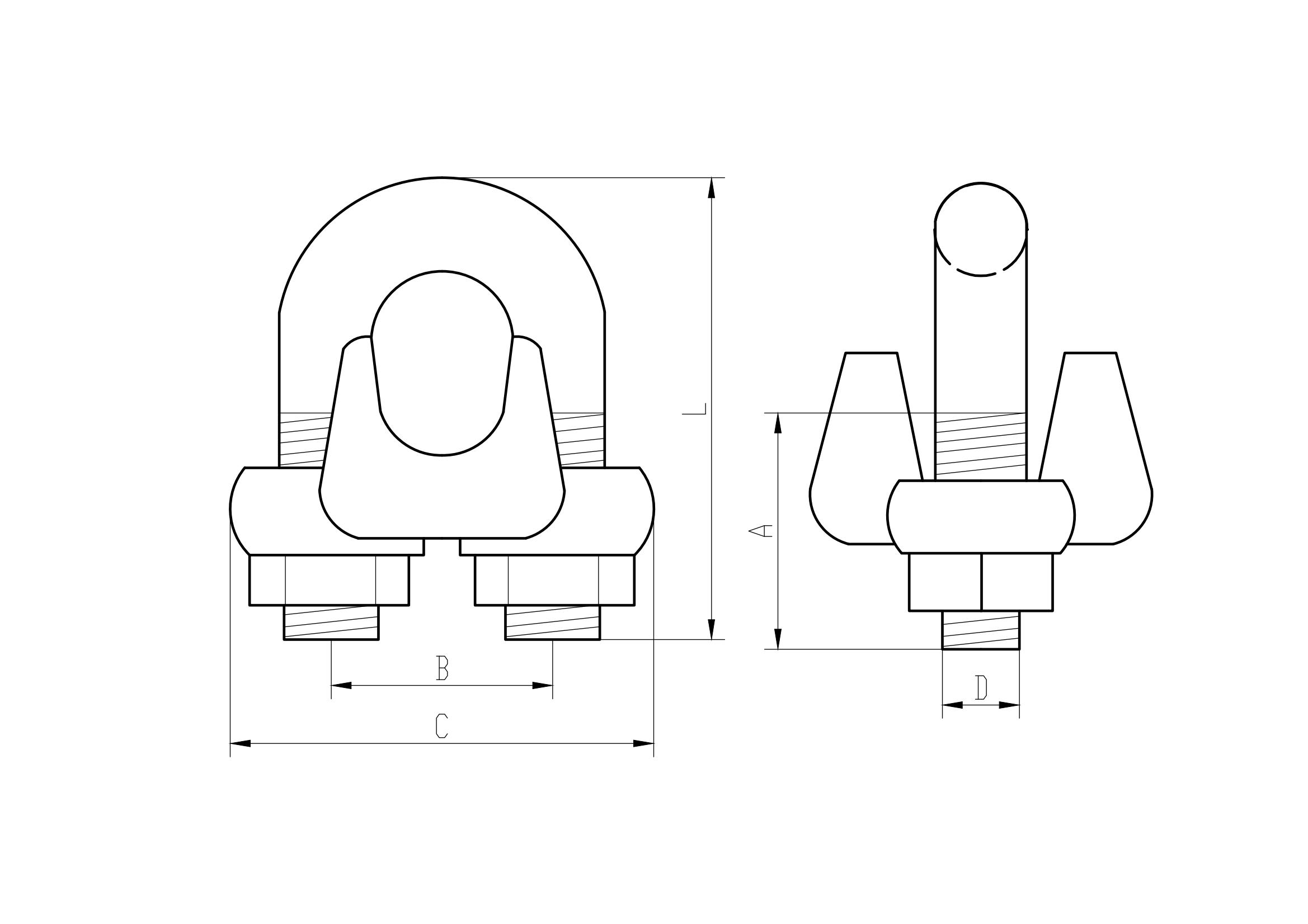

US Type Forged Wire Rope Clips | ||||||
Stock no. | Size(in) | A(mm) | B(mm) | C(mm) | D(thread) | L(mm) |
JSK5030401 | 1/8 | 11.0 | 12.0 | 21 | M6 | 18 |
JSK5030402 | 3/16 | 14.0 | 15.0 | 24 | M6 | 24 |
JSK5030403 | 1/4 | 15.0 | 19.0 | 30 | M8 | 26 |
JSK5030404 | 5/16 | 19.0 | 22.0 | 33 | M10 | 35 |
JSK5030405 | 3/8 | 19.0 | 25.0 | 41 | M12 | 38 |
JSK5030406 | 1/2 | 25.0 | 30.0 | 48 | M12 | 47 |
JSK5030407 | 5/8 | 32.0 | 33.0 | 52 | M14 | 60 |
JSK5030408 | 3/4 | 36.0 | 38.0 | 57 | M16 | 70 |
JSK5030409 | 7/8 | 41.0 | 44.0 | 62 | M20 | 79 |
JSK5030410 | 1 | 46.0 | 47.0 | 67 | M20 | 89 |
