Italian Type Wire Rope Clips
•Material: Stainless steel 304 or 316
•Production technology: Casting
•Surface treatment: Self color/Polishing

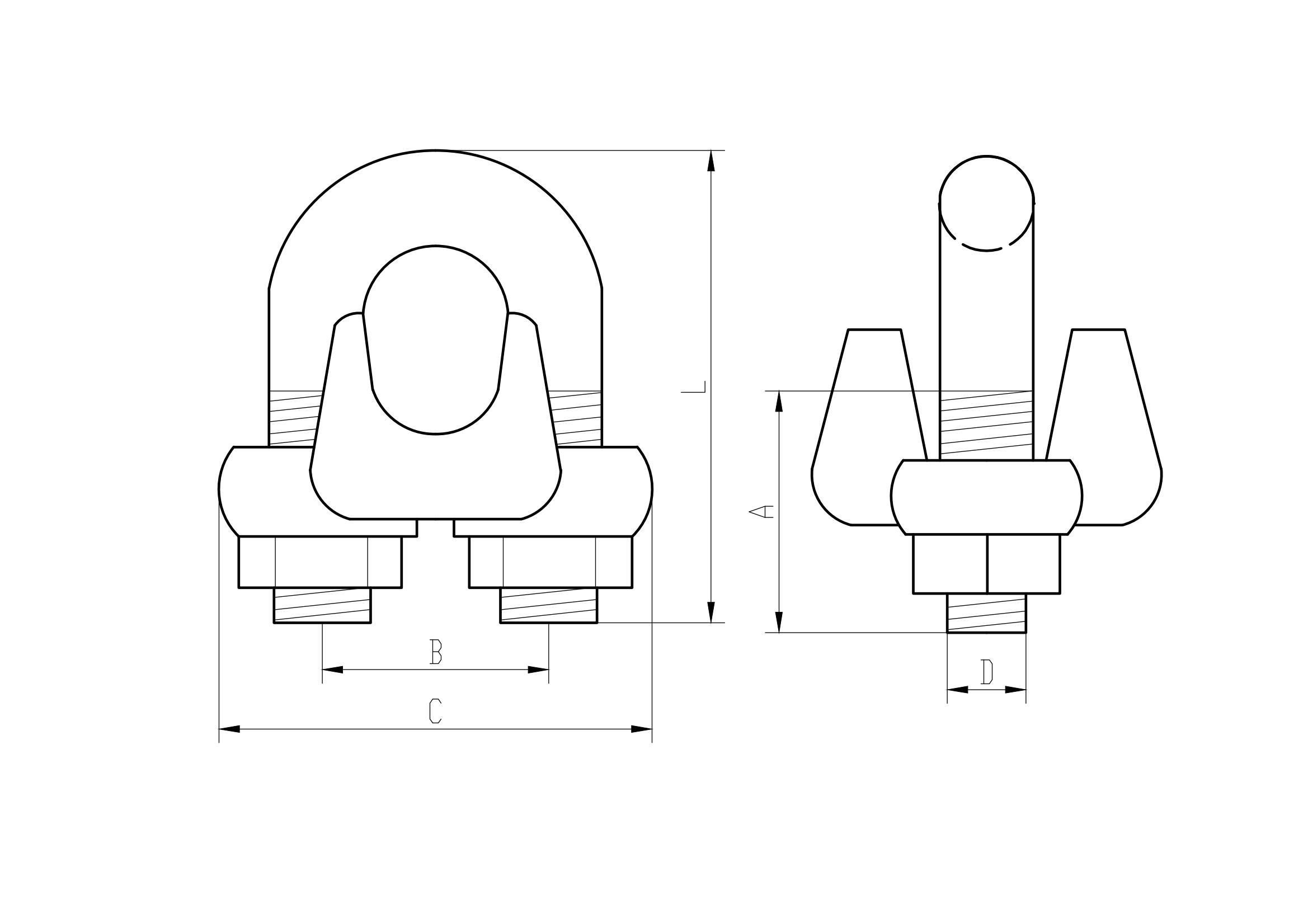

| Italian Type Wire Rope Clips | ||||||
| Stock no. | Size(mm) | A(mm) | B(mm) | C(mm) | D（thread） | L（mm） |
| JSK54030501 | 3 | 22 | 9 | 8 | M4 | 22 |
| JSK54030502 | 5 | 24 | 11 | 9 | M5 | 24 |
| JSK54030503 | 6 | 30 | 15 | 11 | M6 | 33 |
| JSK54030504 | 8 | 33 | 16 | 12 | M6 | 35 |
| JSK54030505 | 10 | 37 | 19 | 14 | M8 | 43 |
| JSK54030506 | 12 | 45 | 23 | 16 | M10 | 54 |
| JSK54030507 | 16 | 53 | 28 | 20 | M10 | 65 |
| JSK54030508 | 20 | 58 | 33 | 22 | M12 | 80 |
| JSK54030509 | 22 | 64 | 37 | 23 | M12 | 85 |
| JSK54030510 | 24 | 69 | 40 | 24 | M12 | 85 |
