JIS 1169 Stainless Steel Eye Nut
•Material: Stainless steel 304 or 316
•Production: Stamping
•Surface treatment:Self color/Polishing
| JIS 1169 Stainless Steel Eye Nut | |||||||

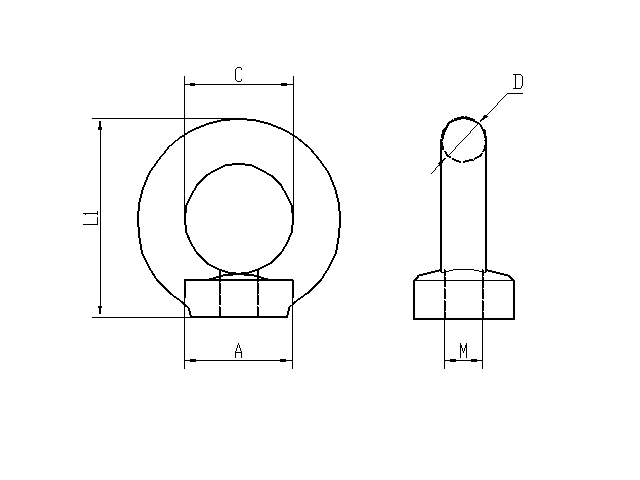

| Stock no. | Size(mm/inch) | A(mm) | C(mm) | D(mm) | L1(mm) | M(thread) | BL(lbs) |
| JSK5050401 | 6 | 14 | 16 | 5 | 30 | M6 | 1100 |
| JSK5050402 | 8 | 16 | 20 | 6.2 | 39.3 | M8 | 1300 |
| JSK5050403 | 10 | 20 | 25 | 8 | 48 | M10 | 2600 |
| JSK5050404 | 12 | 25 | 30 | 10 | 61 | M12 | 3500 |
| JSK5050405 | 16 | 32 | 35 | 12.5 | 72 | M16 | 8000 |
| JSK5050406 | 20 | 37 | 40 | 16 | 86 | M20 | 10500 |
| JSK5050407 | 24 | 44 | 50 | 20 | 111 | M24 | 14550 |
| JSK5050408 | 30 | 60 | 60 | 25 | 135 | M30 | 20000 |
| JSK5050409 | 1/4" | 14 | 16 | 5 | 30 | 1/4" | 1200 |
| JSK5050410 | 5/16" | 16 | 20 | 6.2 | 39.3 | 5/16" | 1300 |
| JSK5050411 | 3/8" | 20 | 25 | 8 | 48 | 3/8" | 2600 |
| JSK5050412 | 1/2" | 25 | 30 | 10 | 61 | 1/2" | 3500 |
| JSK5050413 | 5/8" | 32 | 35 | 12.5 | 72 | 5/8" | 8000 |
| JSK5050414 | 3/4" | 37 | 40 | 16 | 86 | 3/4" | 10500 |
| JSK5050415 | 1" | 44 | 50 | 20 | 111 | 1" | 14450 |
