JIS 1168 Stainless Steel Eye Bolt
•Material: Stainless steel 304 or 316
•Production: Stamping
•Surface treatment:Self color/Polishing
| JIS 1168 Stainless Steel Eye Bolt | |||||||

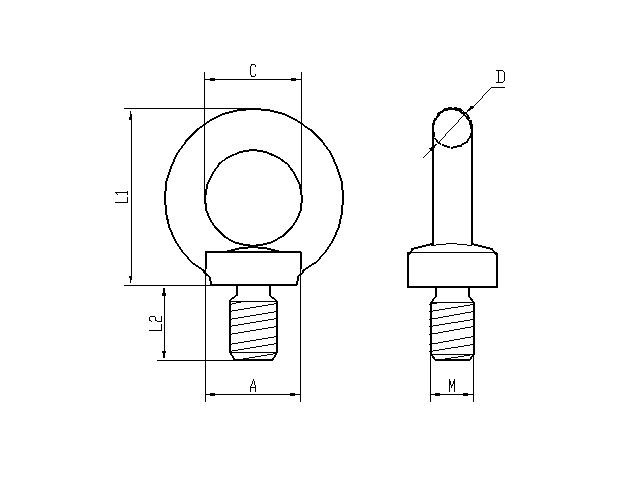

| Stock no. | Size(mm/inch) | A(mm) | C(mm) | D(mm) | L1(mm) | M(thread) | BL(lbs) |
| JSK5050301 | 6 | 14 | 16 | 5 | 30 | M6 | 1100 |
| JSK5050302 | 8 | 16 | 20 | 6.2 | 33 | M8 | 1800 |
| JSK5050303 | 10 | 20 | 25 | 8 | 41 | M10 | 2600 |
| JSK5050304 | 12 | 25 | 30 | 10 | 51 | M12 | 3500 |
| JSK5050305 | 16 | 32 | 35 | 12.5 | 60 | M16 | 8000 |
| JSK5050306 | 20 | 37 | 40 | 15.5 | 69 | M20 | 10500 |
| JSK5050307 | 24 | 44 | 50 | 20 | 87 | M24 | 14550 |
| JSK5050308 | 30 | 60 | 60 | 25 | 105 | M30 | / |
| JSK5050309 | 1/4" | 14 | 16 | 5 | 30 | 1/4" | 1100 |
| JSK5050310 | 5/16" | 16 | 20 | 6.2 | 33 | 5/16" | 1800 |
| JSK5050311 | 3/8" | 20 | 25 | 8 | 41 | 3/8" | 2600 |
| JSK5050312 | 1/2" | 25 | 30 | 10 | 51 | 1/2" | 3400 |
| JSK5050313 | 5/8" | 32 | 35 | 12.5 | 60 | 5/8" | 8000 |
| JSK5050314 | 3/4" | 37 | 40 | 15.5 | 69 | 3/4" | 10500 |
| JSK5050315 | 1" | 44 | 50 | 20 | 87 | 1" | 13000 |
