G411 US Type Standard Thimble
•Material: Stainless steel 304 or 316
•Production: Forging, Casting
•Surface treatment: Self color/Polishing
•Breakage test is made for samples of each batch.
G411 US Type Standard Thimble | ||||||

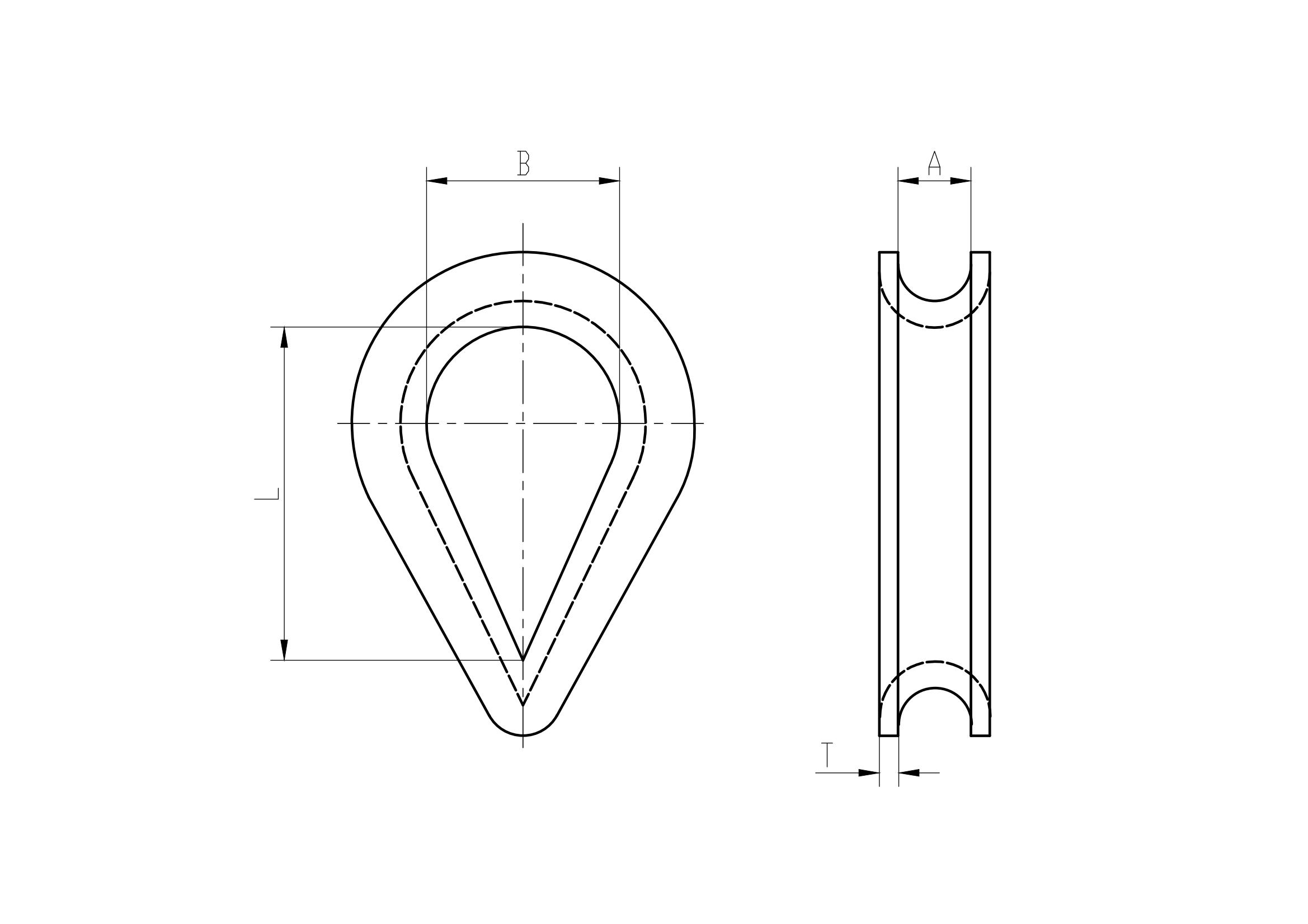

Stock no. | Size(in) | A(in) | B(in) | L(in) | T(in) | DiaφCable(in) |
JSK5040201 | 1/8 | 0.16 | 0.69 | 1.31 | 0.05 | 1/8 |
JSK5040202 | 3/16 | 0.22 | 0.69 | 1.31 | 0.05 | 3/16 |
JSK5040203 | 1/4 | 0.28 | 0.69 | 1.31 | 0.05 | 1/4 |
JSK5040204 | 5/16 | 0.34 | 0.81 | 1.5 | 0.05 | 5/16 |
JSK5040205 | 3/8 | 0.41 | 0.94 | 1.63 | 0.06 | 3/8 |
JSK5040206 | 1/2 | 0.53 | 1.13 | 1.88 | 0.08 | 1/2 |
JSK5040207 | 5/8 | 0.66 | 1.38 | 2.25 | 0.13 | 5/8 |
JSK5040208 | 3/4 | 0.78 | 1.63 | 2.5 | 0.14 | 3/4 |
JSK5040209 | 7/8 | 0.94 | 1.88 | 3.5 | 0.16 | 7/8 |
JSK5040210 | 1 | 1.06 | 2.5 | 4.25 | 0.16 | 1 |
JSK5040211 | 1-1/8 | 1.31 | 2.75 | 4.5 | 0.22 | 1-1/8 |
